- ПроизводительSiemens
- Артикул1LE5683-3BB44-7AJ0-Z L50+L51+L52+N30+Q02+R53+R62
Уточняйте в запросе
9 670 518 р.

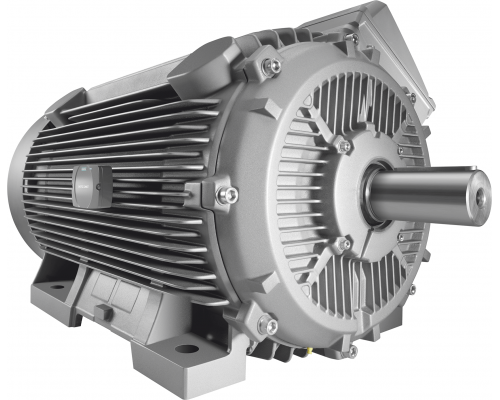

- Описание ПродуктаSD Pro motor type: 1CV3354B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 155(F) gray cast iron housing Premium Isolation Performance Line Premium Efficiency IE3, 4-pole * size 355L* 400 kW (50 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3AC 50 Hz 690VD IM B 3, 6 Pt100 resistance thermometers 2 wire circuit (12 terminals) Terminal box base left with terminal box at top L50=Bearing insulation DE DE L51=Bearing insulation NDE L52=Grounding brush for converter operation N30=Increased humidity/temp. with 30 to 60 gram water Q02=Anti-condensation heating for 230 V (2 terminals) R53=Undrilled removable entry plate R62=Auxiliary terminal box cast iron (small)
- Заказной Номер (Артикл)1LE5683-3BB44-7AJ0-Z L50+L51+L52+N30+Q02+R53+R62
- Количество в упаковке1
- Вес Нетто (Кг)2080,000 Кг
- Все характеристики
SD Pro motor type: 1CV3354B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 155(F) gray cast iron housing Premium Isolation Performance Line Premium Efficiency IE3, 4-pole * size 355L* 400 kW (50 Hz) standard color RAL 7030 if no order code is specified for selecting another color.? The product will be delivered with either the Siemens or Innomotics product brand. 3AC 50 Hz 690VD IM B 3, 6 Pt100 resistance thermometers 2 wire circuit (12 terminals) Terminal box base left with terminal box at top L50=Bearing insulation DE DE L51=Bearing insulation NDE L52=Grounding brush for converter operation N30=Increased humidity/temp. with 30 to 60 gram water Q02=Anti-condensation heating for 230 V (2 terminals) R53=Undrilled removable entry plate R62=Auxiliary terminal box cast iron (small)
Продукт
- Описание ПродуктаSD Pro motor type: 1CV3354B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 155(F) gray cast iron housing Premium Isolation Performance Line Premium Efficiency IE3, 4-pole * size 355L* 400 kW (50 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3AC 50 Hz 690VD IM B 3, 6 Pt100 resistance thermometers 2 wire circuit (12 terminals) Terminal box base left with terminal box at top L50=Bearing insulation DE DE L51=Bearing insulation NDE L52=Grounding brush for converter operation N30=Increased humidity/temp. with 30 to 60 gram water Q02=Anti-condensation heating for 230 V (2 terminals) R53=Undrilled removable entry plate R62=Auxiliary terminal box cast iron (small)
- Заказной Номер (Артикл)1LE5683-3BB44-7AJ0-Z L50+L51+L52+N30+Q02+R53+R62
- Вид продуктовSIMOTICS SD 1LE5 Standard Motors
- Жизненный Цикл Продукта (PLM)PM300: Активный продукт
Информация поставки
- Количество в упаковке1
- Вес Нетто (Кг)2080,000 Кг
- Единица Измерения УпаковкиНе доступный
- Единицы Измерения1 шт.
- Плановый срок отгрузки с завода (раб. дни)40 День
Дополнительная информация о продукте
- Группа Продукта2679
- Каталог IDGG_LD
- Код группыP113
- Страна происхожденияЧехия
- Товарный код85015394
Коммерческие данные
- Ценовая Группа3F4
